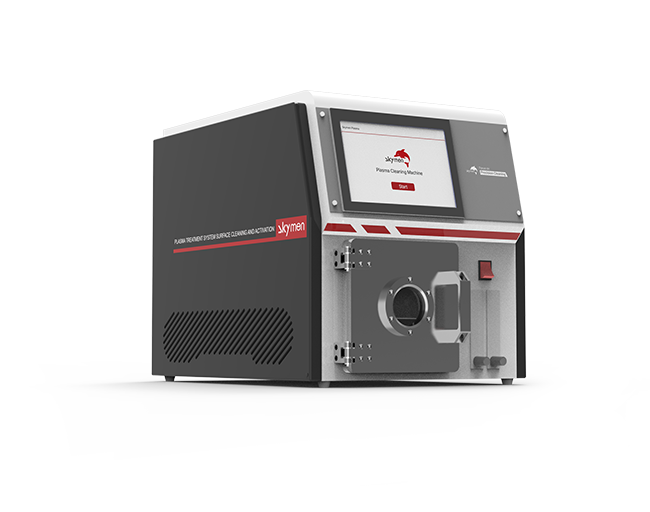

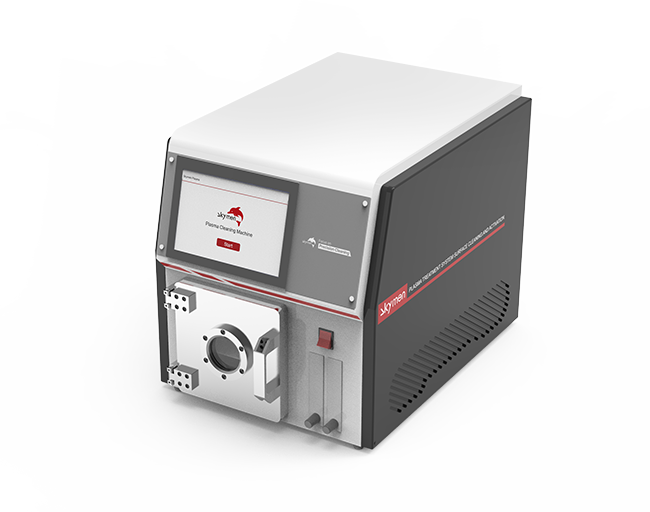

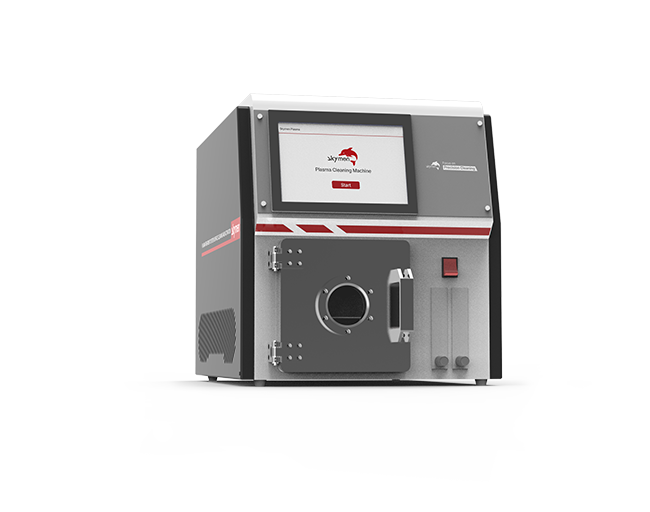

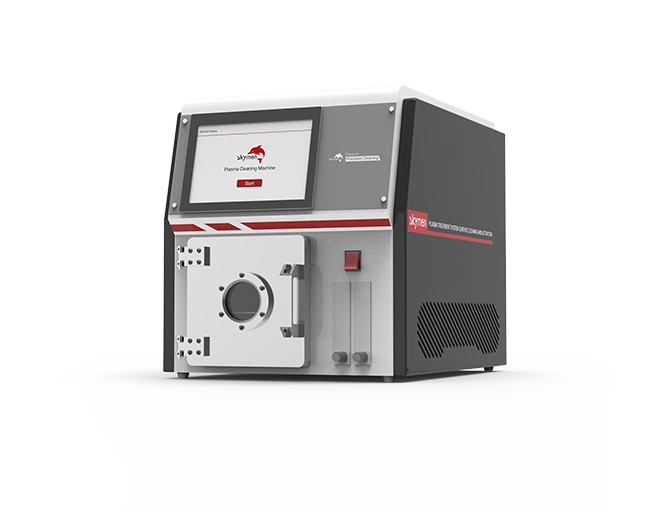

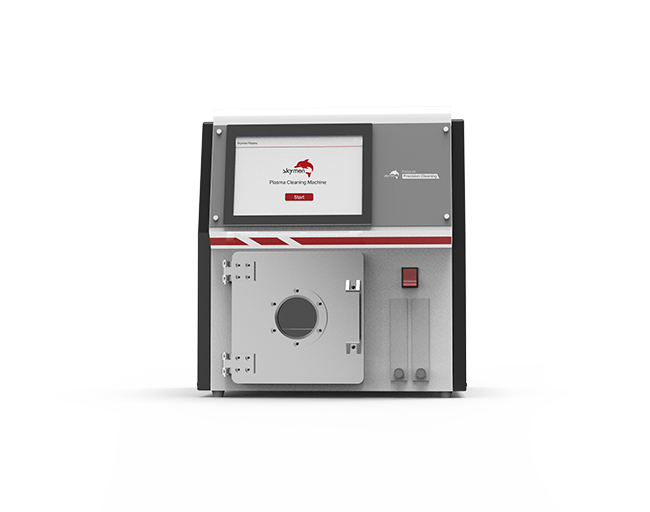

Small Vacuum Low-Pressure Plasma Cleaning Machine

Small Vacuum Low Pressure Plasma Cleaning Machine

Vacuum low-pressure plasma cleaning machines are engineered for superior surface treatment in pre-production process verification. It delivers outstanding performance in cleaning, activation, and coating applications. Notably, our systems are ideal for the surface activation of hard-to-bond materials like PTFE, FEP, PEEK, and Silicones. The small model is suitable for sample research and teaching in university laboratories, scientific research institutions, etc., or small-batch production in industry.

Request Quote Download

Product Features

01

Self-developed human-machine interface and control system, comprehensive functions, simple to operate
02

Supports authority classification and independent password lock, with multiple interlocking functions to ensure the safety of equipment use. It can switch between manual mode and automatic mode
03

High vacuum chamber design with excellent sealing, makes the process gas more uniform, and the ultimate vacuum can reach below 5Pa
04

Over-temperature, overload, short circuit, and other abnormal prompts and alarm functions. The process gas pipe is not exposed to eliminate potential safety hazards
05

Unique discharge technology, plasma formation is uniform and stable, ensuring better effect
06

Ultra-low temperature treatment, no damage to the substrate, compatible with various materials
07

Layered design of vacuum chamber, flexible adjustment according to the size of the processed product
08

High-performance electrical components to ensure stable and reliable equipment quality. We can also customize key components according to your specific needs
09

Ergonomic design makes operation easy and comfortable. Innovative hinge design extends the service life of the seal

Technical Parameter

Model	Capacity (L)	Chamber Dimension (mm)	Pallet Size (mm)	Power (W)	Frequency	Gas Channel	Gas Pressure	Control Mode	Vacuum Pump
JMD-05K Pro	5	Φ150×260	145×255	200	40kHz	2 Ways	0.1-0.2 MPa	PLC+HMI	Oil Pump with Oil Mist Filter (Optional Upgrade with Dry Pump)
JMD-05M Pro	5	Φ150×260	145×255	150	13.56 MHz, Automatic Tuning Network	2 Ways	0.1-0.2 MPa	PLC+HMI	Oil Pump with Oil Mist Filter (Optional Upgrade with Dry Pump)
JMD-08K Pro	8	180×260×160	176×240	200	40kHz	2 Ways	0.1-0.2 MPa	PLC+HMI	Oil Pump with Oil Mist Filter (Optional Upgrade with Dry Pump)
JMD-08M Pro	8	180×260×160	176×240	150	13.56 MHz, Automatic Tuning Network	2 Ways	0.1-0.2 MPa	PLC+HMI	Oil Pump with Oil Mist Filter (Optional Upgrade with Dry Pump)

Related videos

The surface tension of the glass increases after plasma treatment, transforming the glass from hydrophobic to ultra-hydrophilic for flawless bonding and coating adhesion.

Cleaning Effect

Plasma cleaning systems play a key role in the cleaning process of optical devices and electronic components, effectively removing surface impurities and providing a clean, high-quality substrate for subsequent coating, printing, bonding, and spraying processes.
