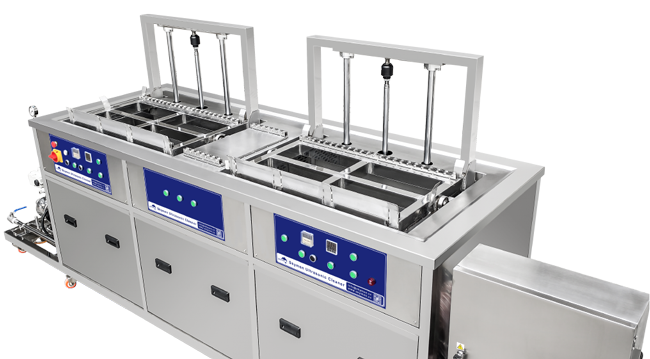

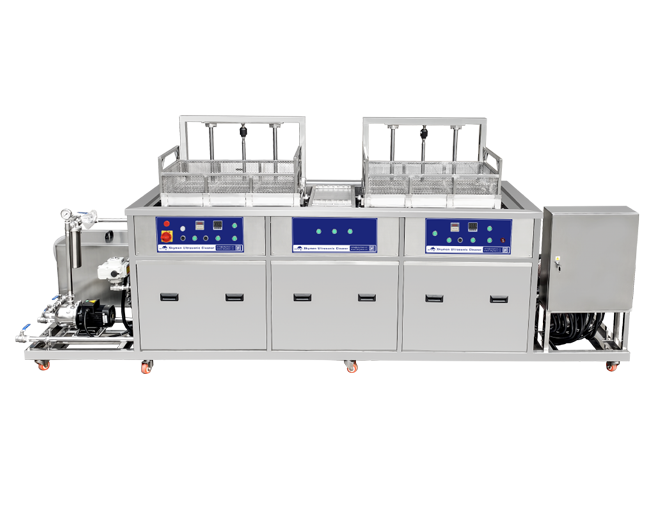

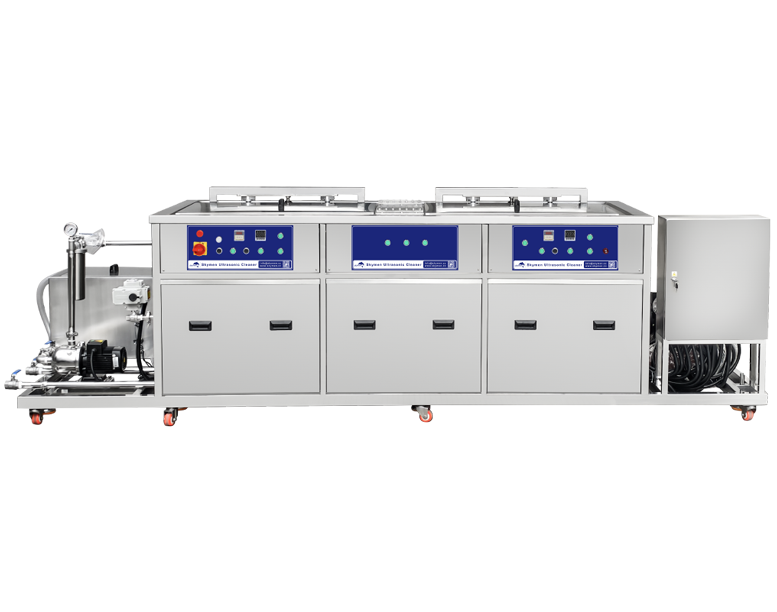

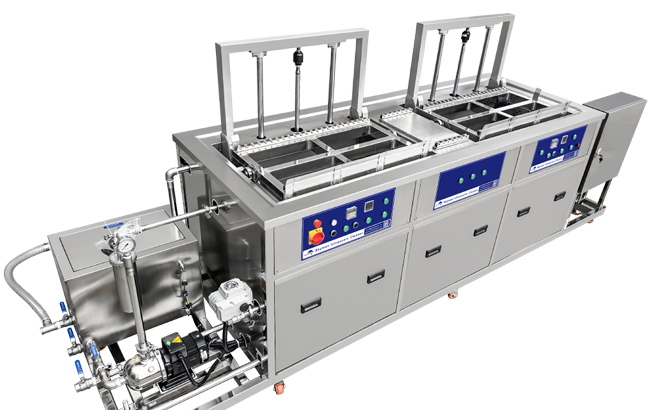

Semi-Automatic Dual-Stage Ultrasonic Cleaner with Roller

Dual Stage Ultrasonic Cleaning Machine with Roller

Engineered to streamline industrial workflows by blending manual flexibility with automated precision. Featuring integrated tank-rim rollers for effortless basket transferring, this semi-automatic ultrasonic cleaning system utilizes a multi-functional ultrasonic tank (with filtration, lifting, and agitation) followed by a heated rinsing tank with lifting and agitation. It delivers an exceptionally cost-effective, labor-saving solution that guarantees deep, residue-free cleaning for heavy-duty components.

Request Quote Download

Product Features

01

The machine features integrated, heavy-duty rollers between the tank, allowing for exceptionally smooth and effortless transfer of the cleaning basket from stage to stage. This ergonomic design eliminates heavy lifting, significantly reducing operator fatigue and streamlining the manual workflow.
02

Engineered for deep and consistent contaminant removal, the first stage combines powerful high-frequency ultrasonics with continuous filtration to maintain fluid longevity, and an automated lifting & agitator system that dynamically oscillates the parts to dislodge stubborn oils and debris from complex geometries.
03

The second stage is a dedicated rinsing tank equipped with a high-efficiency heating system to accelerate chemical residue removal. Integrated with the automated lifting and agitator system, it ensures every part is thoroughly and effectively rinsed free of all chemical traces.
04

By blending manual transfer flexibility with automated cleaning and filtration functions, this system delivers an exceptionally labor-saving and cost-effective semi-automatic solution, maximizing throughput without the high capital investment of a fully automated line.
05

We offer fully custom engineering for this platform. Extending the system into 3-stage, 4-stage, or multi-stage cleaning lines and integrate advanced processes based on your specifications, including hot air drying, spray rinsing, DI water treatment, bubbling, rotating, stirring, and more.

Technical Parameter

Model	Frequency(KHz)	Capacity(L)	Inner Tank Size(mm)	Transducer	Ultrasonic Power(W)	Heating Power(W)	Timer(H)	Temperature Control( ℃)
JMB-2024GSD	28/40	38	500300250	24	0-1200	1500	0-99	RT-95
JMB-2036GSD	28/40	53	500350300	36	0-1800	1500	0-99	RT-95
JMB-2048GSD	28/40	77	550400350	48	0-2400	3000	0-99	RT-95
JMB-2060GSD	28/40	99	550450400	60	0-3000	3000	0-99	RT-95
JMB-2062GSD	28/40	96	800300400	60	0-3000	3000	0-99	RT-95
JMB-2072GSD	28/40	135	600500450	72	0-3600	4500	0-99	RT-95
JMB-2096GSD	28/40	175	700500500	96	0-4800	6000	0-99	RT-95
JMB-2120GSD	28/40	264	800600550	120	0-6000	6000	0-99	RT-95
JMB-2144GSD	28/40	360	1000600600	144	0-7200	9000	0-99	RT-95
JMB-2168GSD	28/40	420	1500700400	168	0-8400	15000	0-99	RT-95
JMB-2192GSD	28/40	480	1200500800	192	0-9600	15000	0-99	RT-95
JMB-2216GSD	28/40	540	1000900600	216	0-10800	18000	0-99	RT-95
JMB-2240GSD	28/40	640	1000800800	240	0-12000	21000	0-99	RT-95
JMB-2264GSD	28/40	800	10001000800	264	0-13200	24000	0-99	RT-95
JMB-2288GSD	28/40	960	12001000800	288	0-14400	27000	0-99	RT-95
JMB-2432GSD	28/40	1500	150010001000	432	0-21600	27000	0-99	RT-95

Related videos

The effortless cleaning basket transitions between tanks using our integrated roller system. It showcases the powerful synergy of high-frequency ultrasonics, automated lifting and agitation, and continuous filtration, followed by a heated rinse cycle that ensures pristine results for your most complex parts.

Cleaning Effect

From heavy industrial grease to persistent machining residues, our combined technologies—ultrasonics, filtration, and rinsing—ensure pristine surfaces on even the most complex parts.

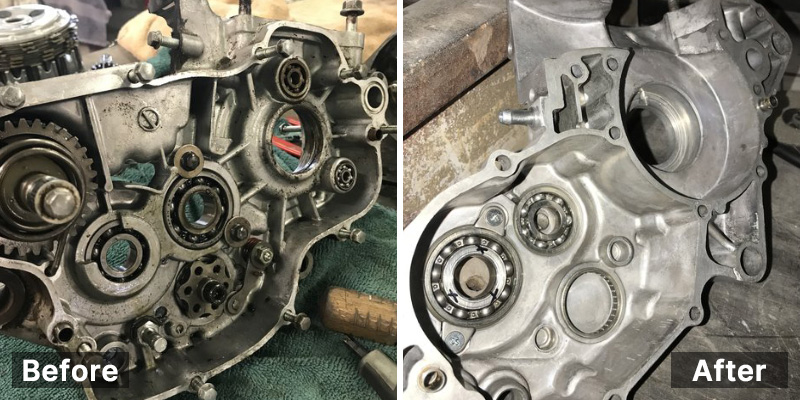

cylinder head cleaning with skymen ultrasonic cleaner before and after
