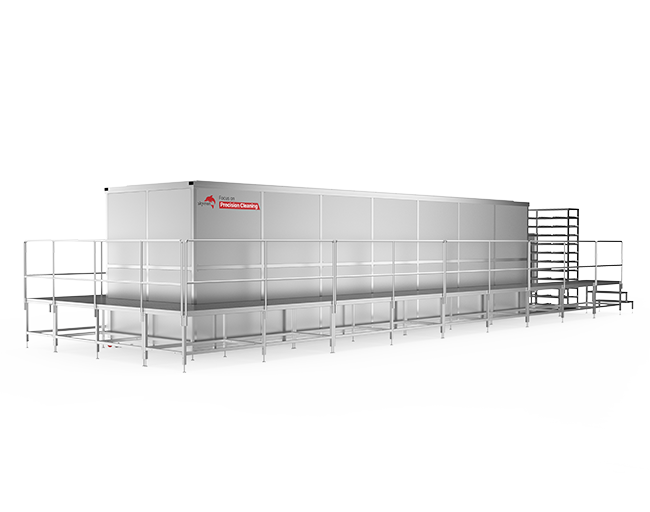

Industrial large-tank ultrasonic cleaner with operator access ladder

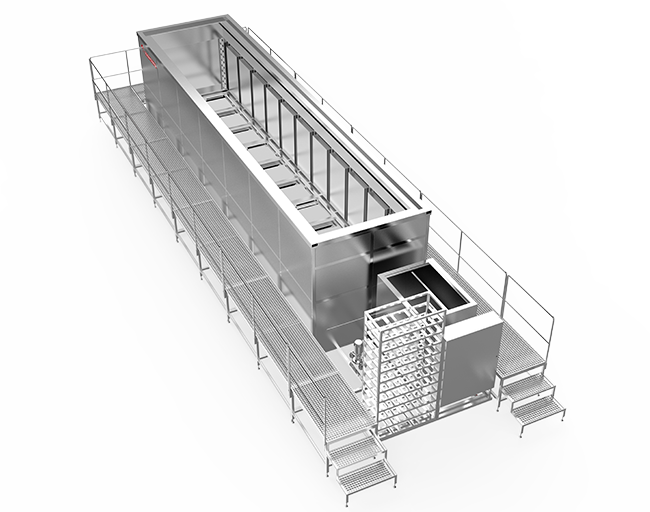

Ultrasonic transducer plates installed in large cleaning tank for uniform cavitation
Heat Exchanger Ultrasonic Cleaning Machine
Skymen Large-Capacity Ultrasonic Cleaner is specially designed for removing scale, deposits, oil, and other stubborn contaminants from large industrial heat exchangers and oversized components. With powerful cavitation technology, it effectively cleans internal tubes, channels, and complex structures that are difficult to reach with traditional cleaning methods. Compared with conventional hydroblasting methods, ultrasonic cleaning provides deeper and more uniform cleaning while reducing manual labor, cleaning time, and wastewater generation.
Request Quote Download
Product Features
  • 01
    Designed for large industrial heat exchangers, the extra-large ultrasonic cleaning tank accommodates oversized components and enables efficient cleaning without disassembly or complex handling processes.
  • 02
    Powerful ultrasonic cavitation penetrates heat exchanger tubes and internal passages to remove scale, rust, oil, and deposits from areas that are difficult to clean with traditional methods.
  • 03
    Ultrasonic transducer plates are arranged around the tank to provide uniform ultrasonic energy distribution, ensuring thorough and consistent cleaning throughout the entire workpiece.
  • 04
    The integrated access ladder provides safe and convenient access for loading, inspection, and routine maintenance.
  • 05
    Adjustable ultrasonic parameters allow cleaning intensity to be optimized for different materials, contamination levels, and process requirements.
  • 06
    Fully customized solutions are available based on your workpieces and process requirements, including tank capacities up to 57,500L, cleaning processes, ultrasonic configurations, and additional functions.
Technical Parameter
Model Tank Size (m) Capacity ( L) Ultrasonic Power (KW) Heating Power (KW) Out Door Use
JTS-11920 4.2*1.9*2.3 18,354 96 135 YES
JTS-12560 5.7*1.9*2.3 24,909 128 180 YES
JTS-13200 7.1*1.9*2.3 31,027 160 225 YES
JTS-13840 8.5*1.9*2.3 37,145 192 270 YES
JTS-14480 10*1.9*2.3 43,700 224 315 YES
JTS-12560W 4.2*2.5*2.3 24,150 128 162 YES
JTS-13200W 5.7*2.5*2.3 32,775 160 189 YES
JTS-14160W 7.1*2.5*2.3 40,825 208 270 YES
JTS-14800W 8.5*2.5*2.3 48,875 240 324 YES
JTS-15440W 10*2.5*2.3 57,500 272 378 YES
Related videos
The machine’s large-scale configuration, tank structure, and overall operating process give you a clear view of how the system is built for demanding industrial cleaning applications.
Cleaning Effect
Ultrasonic cleaning effectively removes scale, sediment, oil, and other contaminants accumulated inside heat exchangers. The powerful cavitation effect reaches internal tubes and complex areas, restoring cleaner surfaces and improving heat transfer performance.
cleaning comparison for heat exchanger with skymen large ultrasonic cleaning machine
