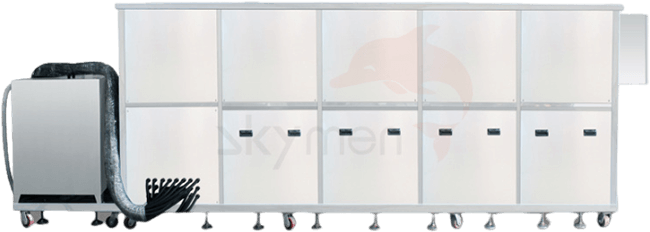

Large Tank Ultrasonic Cleaning Machine


For some products with larger sizes, such as heat exchangers, large engines, aircraft parts, etc., a large capacity ultrasonic cleaning machine is required. This machine offers unmatched cleaning power to easy remove contaminants like oil, rust, and residue from complex components. Featuring PLC intelligent control for easy operation and a filtration system that helps to remove contaminants and maintain the cleanliness of the solution, ensuring consistent, high-quality results. It can be equipped with ladders and platforms, and customizable functions like cranes and more for better operation. Ideal cleaning industry for automotive, aerospace, oil & gas, mining, and more.



Product Features
  • 01
    Using pure manual argon arc welding, durable and high temperature resistant.
  • 02
    Independent generator control system.
  • 03
    The machine has a unique memory chip.
  • 04
    Capacity from 1500L to 20480L Available, perfect for large-scale cleaning tasks.
  • 05
    PLC intelligent control ensures automated, precise cleaning process.
  • 06
    Single-tank filtration for instant and effective stain removal.
  • 07
    100% time & labor saved, energy-efficient, and empowering production.
  • 08
    Customizable functions of tailored solutions for different industries.
Technical Parameter
Model Tank Size(MM) Capacity(L) Transducer (pcs) Ultrasonic Frequency(KHz) Ultrasonic Power(W) Heating Power(W) Temp Control(℃) Filtration System
JP-1216ST 1500*1000*1000 1500 216 28/40 0-10800 36000 RT-95 YES
JP-1288ST 2000*1200*800 1920 288 28/40 0-14400 36000 RT-95 YES
JP-1360ST 2000*1200*1000 2400 360 28/40 0-18000 36000 RT-95 YES
JP-1432ST 2000*1500*1200 3000 432 28/40 0-21800 36000 RT-95 YES
JP-1576ST 2500*1500*1200 4500 576 28/40 0-28800 36000 RT-95 YES
JP-1648ST 3000*1500*1200 5400 648 28/40 0-32400 36000 RT-95 YES
JP-1720ST 4000*1600*1000 6400 720 28/40 0-36000 36000 RT-95 YES
JP-1936ST 3500*1600*1300 7280 936 28/40 0-45800 36000 RT-95 YES
JP-11152ST 2500*2000*1700 8500 1152 28/40 0-57600 36000 RT-95 YES
JP-11224ST 3200*2000*1500 9600 1224 28/40 0-61200 36000 RT-95 YES
JP-11368ST 8000*1200*1200 11520 1368 28/40 0-68400 36000 RT-95 YES
JP-11512ST 8000*1600*1600 20480 1512 28/40 0-75600 48000 RT-95 YES

Related videos
This powerful ultrasonic machine effectively cleans large components such as heat exchangers, engines, aircraft parts, and industrial machinery, removing oil, rust, and other stubborn contaminants. For heavy-duty cleaning applications, it offers unparalleled cleaning efficiency.
Cleaning Effect
Ultrasonic cleaning is fast and effective, and can easily remove oil, grease, rust, glue and other dirt. It can also clean blind holes, slits and hidden areas of workpieces.
