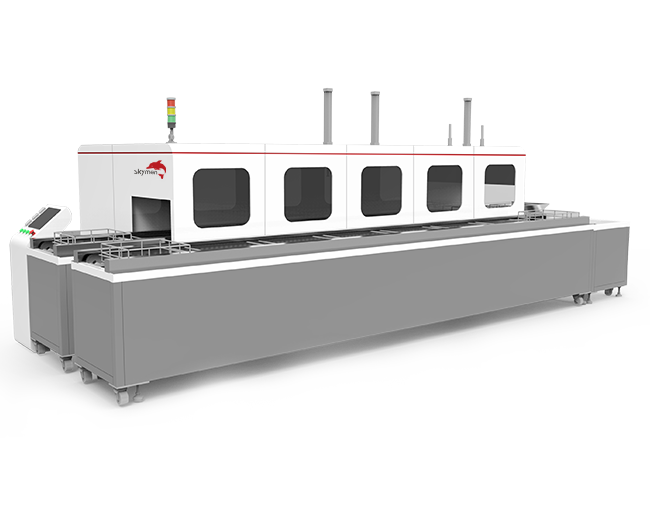

Automatic Pass-through Cleaning with Drying Line

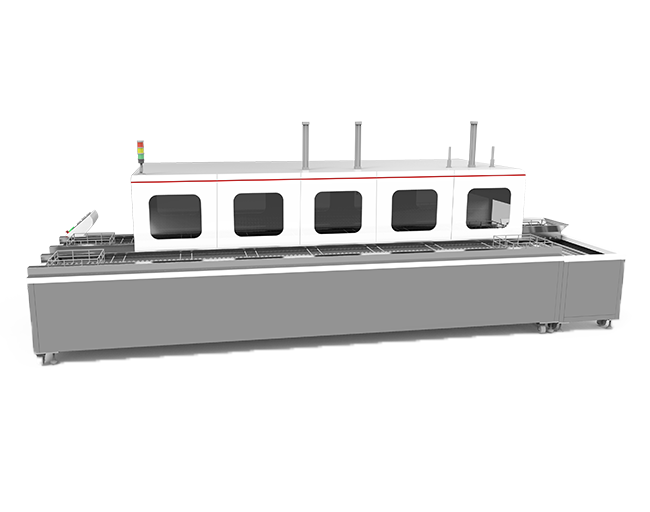

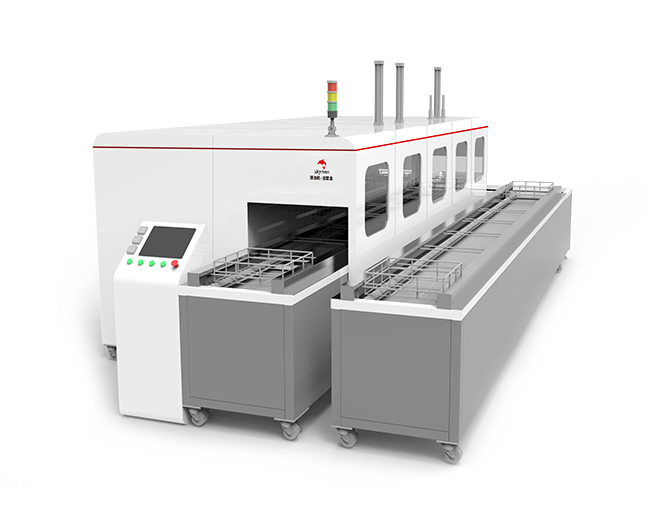

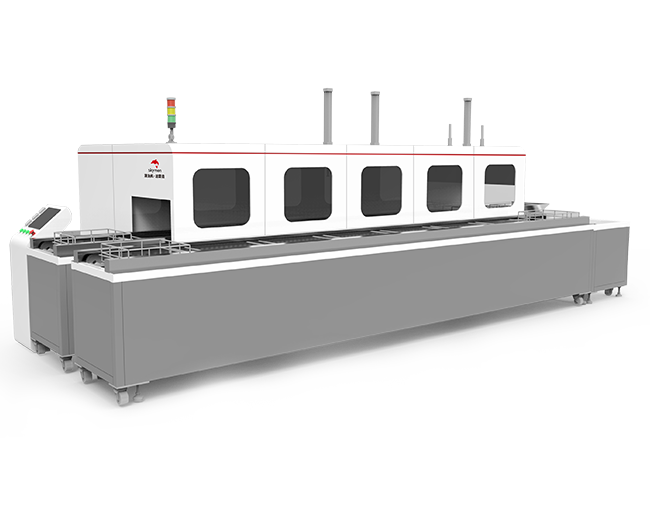

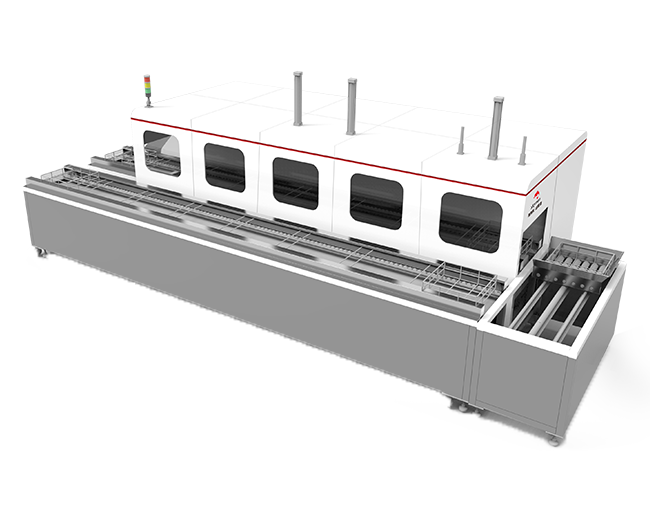

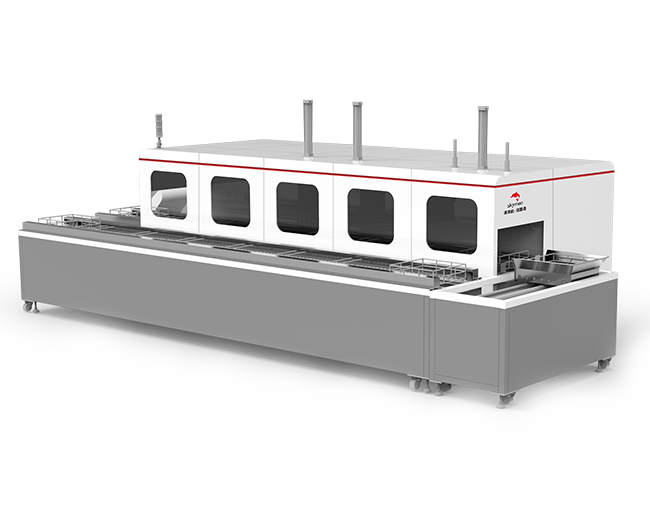

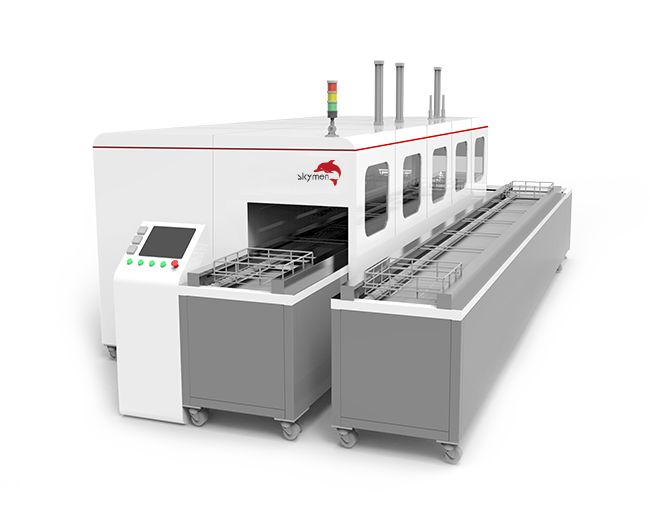

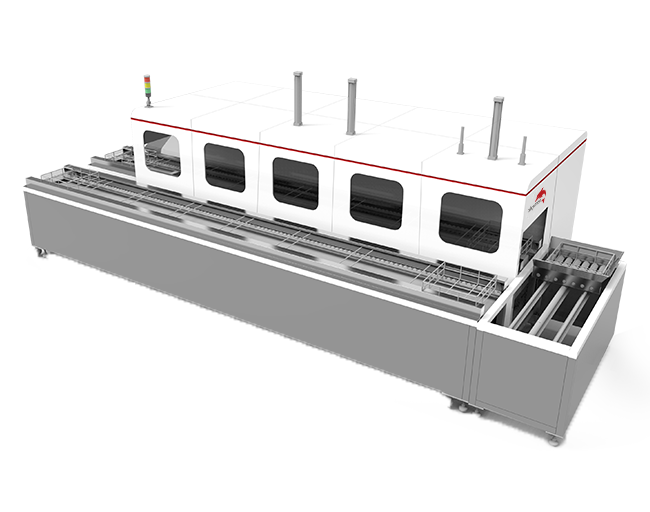

The automatic pass-through cleaning line is a specialized cleaning equipment designed for the parts that require large cleaning volumes and high cleaning standards. It consists of 6 stations: 1 detergent spray cleaning section, 1 detergent ultrasonic cleaning section, 2 spray rinsing sections, 1 air knife section, and 1 hot air drying section. Its working principle is to clean the surface of workpieces by utilizing the impact of high-pressure spraying combined with the chemical degreasing effect of cleaning agents. The equipment features automatic control, simple operation, a closed-type appearance, and an elegant, well-structured design. With full automation, it offers high cleaning efficiency, consistent cleaning quality, and is suitable for mass production.

Request Quote Download

Product Features

01

Key components of the electrical control system are high-quality parts, ensuring safe, reliable performance and a long service life
02

The heating system uses a high-precision temperature probe for real-time sensing of heating temperature to control the start and stop of the heating device
03

The filtration and circulation system effectively filters large particle contaminants from the cleaning solution, maximizing the utilization of the cleaning fluid
04

The liquid storage tank is equipped with an oil skimmer, which can effectively separate dirt such as oil and impurities
05

The liquid level control system monitors the volume of cleaning solution in the tank in real time to regulate its usage
06

The PLC control system manages the start/stop of the entire machine, monitors the cleaning process, and allows programming of cleaning processes or manual intervention based on actual conditions
07

The air knife system uses a super air knife to blow off large water droplets on the product surface, accelerating the drying process
08

The equipment is equipped with an overload protection device. Once there is an abnormality, an Immediate alert
09

The length and function of each stage are customized according to the customer's request

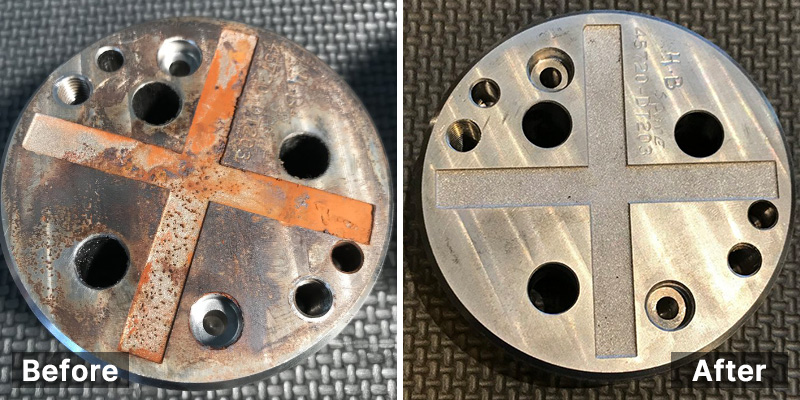

Cleaning Effect

It is widely used for cleaning auto parts, engines, exchangers, hardware, machined parts, aluminum alloy products, semiconductor products, monocrystalline/polycrystalline silicon wafers, PCB boards, etc.

cleaning-electronic-components-with-skymen-ultrasonic-cleaner-before-and-after
