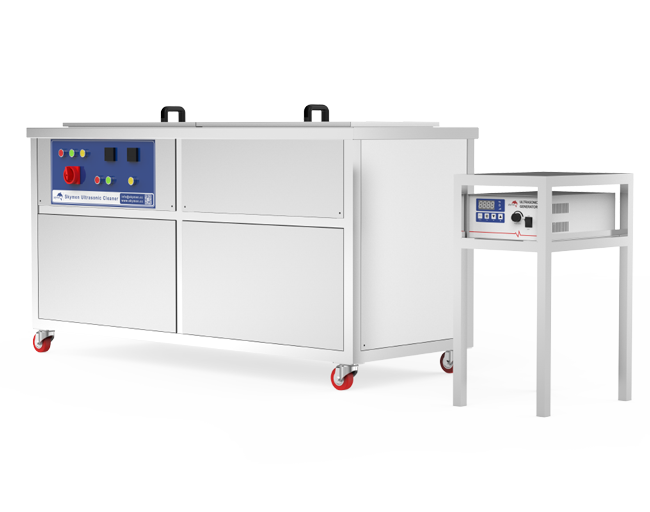

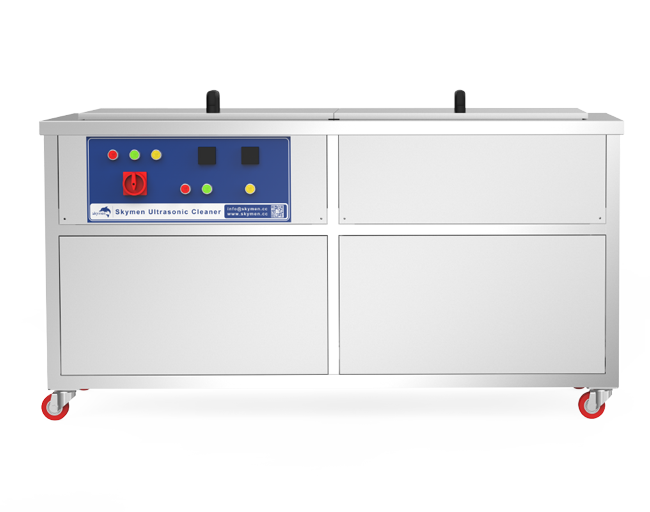

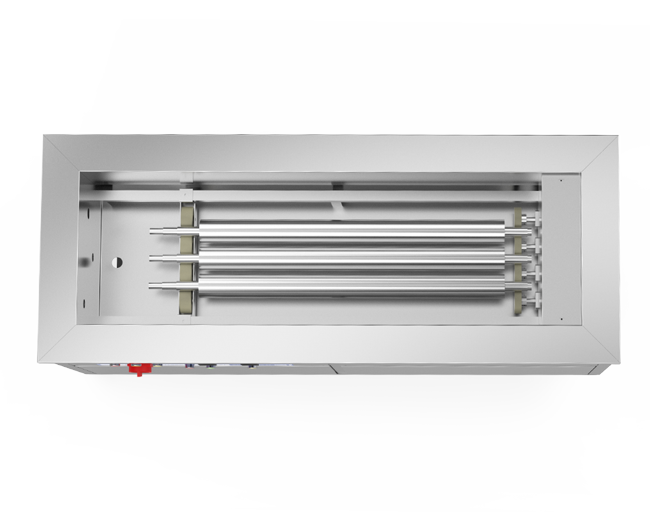

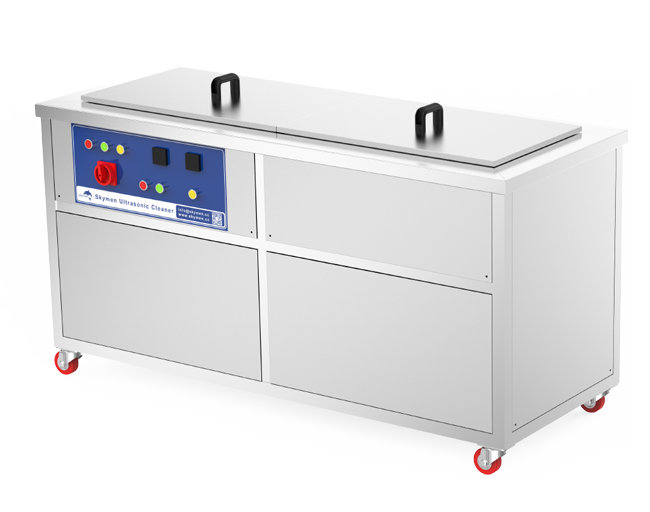

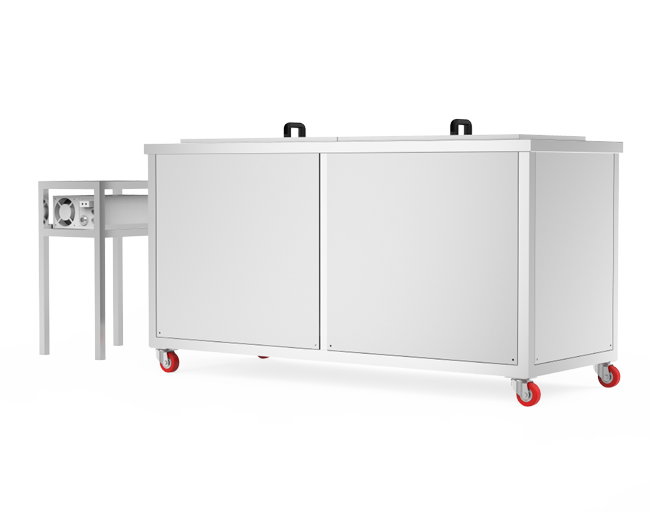

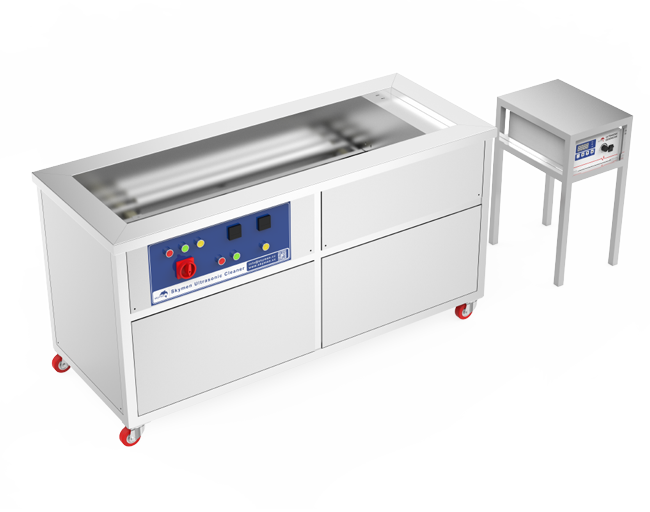

Anilox Roller Ultrasonic Cleaning Machine

Achieve superior cleaning performance with the Anilox Roller Ultrasonic Cleaning Machine – a state-of-the-art solution for the precise and efficient cleaning of anilox rollers used in the printing industry. This is designed to remove stubborn ink residues, contaminants, and build-up without damaging delicate surfaces. Equipped with high-frequency ultrasonic waves, the machine creates microscopic bubbles that penetrate deep into the roller’s surface, ensuring thorough and uniform cleaning even in the smallest grooves. his machine is an essential tool for any printing business aiming to maintain the longevity of their anilox rollers while enhancing the quality and consistency of print jobs.

Request Quote Download

Product Features

01

Ultrasonic waves clean the micropores more cleanly. The diameter of the water bubbles generated by ultrasonic waves is about 2-5 microns. In a single cell, 6-15 water bubbles can enter at the same time to physically impact the dirt at the bottom of the cell, thereby achieving the purpose of deep cleaning.
02

The ultrasonic cleaning effect is more effective. The bubbles generated by sound waves dislodge dirt through impact, a physical effect, while the cleaning fluid reduces the adhesion of dirt, a chemical effect. The combination of physical and chemical principles makes the cleaning more effective; this is also an advantage that other cleaning methods do not have.
03

It is not easy to damage the anilox roller. By controlling the power and frequency of the ultrasonic generator, the damage to the anilox roller during the cleaning process is minimized.
04

Built with industrial-grade materials for long-lasting performance in high-demand environments. Saves time and reduces operational costs by providing quick, automated cleaning cycles.
05

More convenient to operate and more environmentally friendly. Ultrasonic cleaning is a green and environmentally friendly method that converts electrical energy into kinetic energy. There is no dust flying and sewage flowing.

Technical Parameter

Model	Capacity (L)	Tank Size (mm)	Ultrasonic Power (W)	Ultrasonic Frequency (kHz)	Heating Power (W)	Cleaning Quantity（pcs）	Rotating Speed (r/min)
JTS-1024W	72	800300300	1200	28/40	3000	1	5-10
JTS-1036W	120	800500300	1800	28/40	6000	2	5-10
JTS-1048W	192	1200400400	2400	28/40	6000	1	5-10
JTS-1072W	288	1200600400	3600	28/40	9000	2	5-10
JTS-1060W	240	1500400400	3000	28/40	6000	1	5-10
JTS-1108W	540	1500600600	5400	28/40	12000	2	5-10
JTS-1120W	648	1800600600	6000	28/40	12000	1	5-10
JTS-1144W	1080	18001000600	7200	28/40	15000	2	5-10

Related videos

Ultrasonic anilox roller cleaner offers a non-destructive, deeply penetrating solution—safely removing dried ink and coatings from the deepest cells.

Cleaning Effect

Ultrasonic cleaning technology delivers deep cleaning to remove stubborn ink build-up, oils, and debris, ensuring optimal performance and longevity for your rollers.

brake caliper cleaning with skymen ultrasonic cleaner before and after
