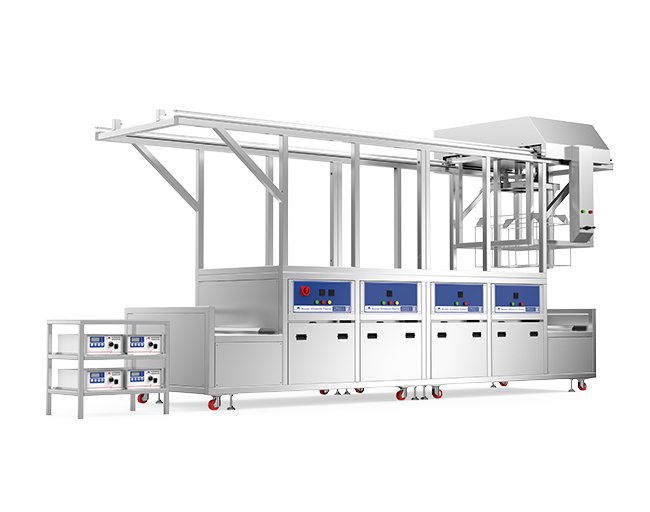

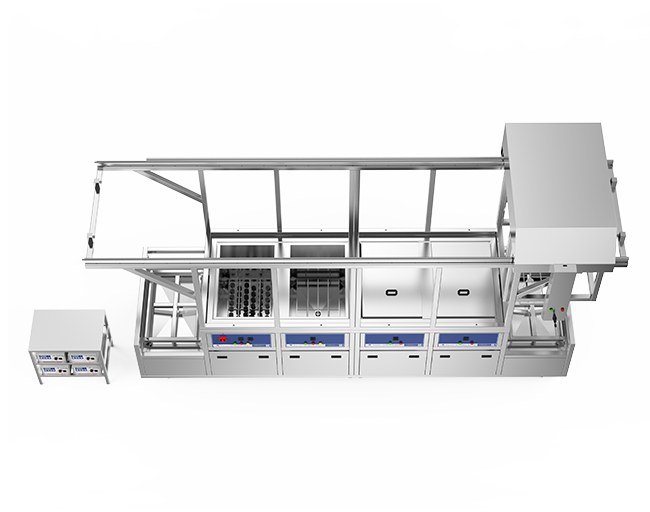

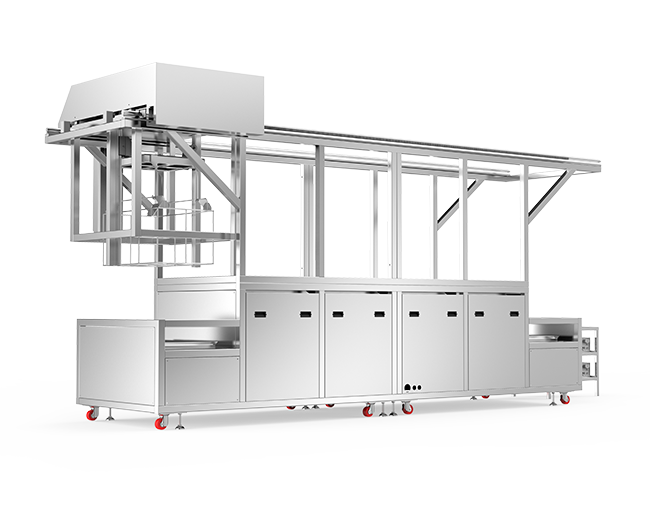

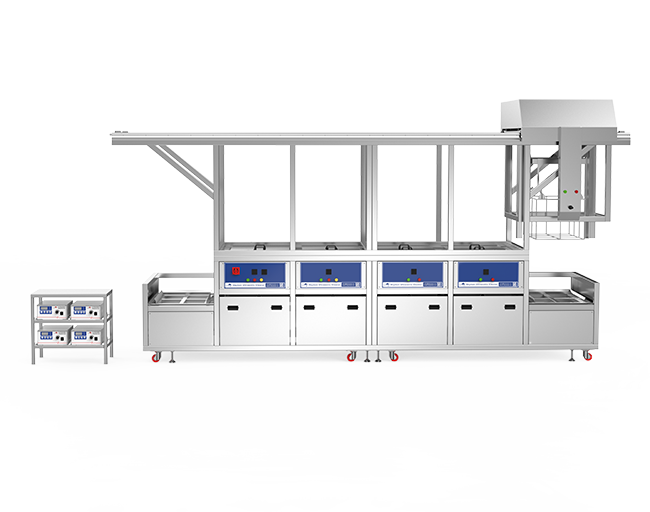

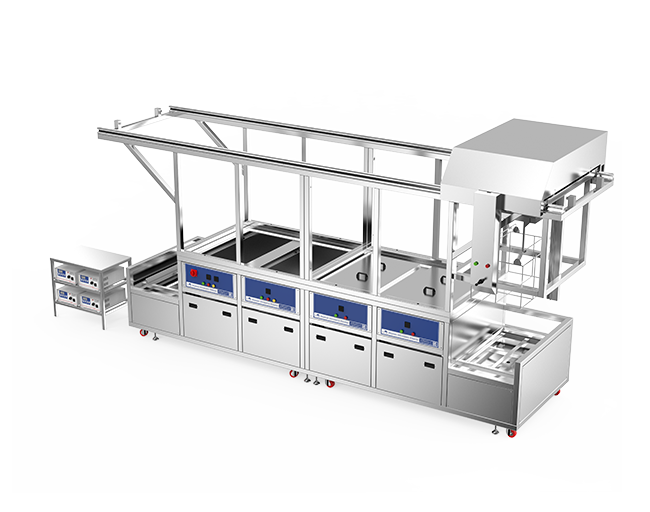

Semi-Automatic Ultrasonic Cleaning Machine with Motorized Transfer

Multi Stage Cleaning Machine with Motorized Transfer System

This Semi-Automatic Ultrasonic Cleaner upgrades traditional manual transfer operations with a motorized lifting and horizontal movement system, providing easier handling and more efficient multi-stage cleaning. With integrated ultrasonic cleaning, rinsing, and drying processes, it delivers consistent results while reducing operator workload. Customized cleaning solutions are available based on your workpieces and production requirements.

Request Quote Download

Product Features

01

The electric transfer system enables smooth basket movement between tanks, replacing manual handling and improving operation efficiency while reducing operator workload.
02

The multi-tank configuration separates cleaning, rinsing, and drying processes, allowing continuous workflow and preventing cross-interference between different stages.
03

Optional fixed or mobile spray systems can be integrated before or after ultrasonic cleaning to remove heavy contaminants in advance and improve final cleaning quality.
04

Multiple ultrasonic frequency options, including 28kHz, 40kHz, 68kHz, 80kHz, and 120kHz, are available to meet different cleaning requirements from general industrial parts to precision components.
05

The ultrasonic generator features automatic frequency tracking and multiple protection functions against overcurrent, overheating, and no-load operation, ensuring stable and reliable performance.
06

The hot-air circulation drying system provides energy-efficient and uniform drying performance through optimized airflow design, ensuring consistent results across batches.
07

The three-stage circulation filtration system removes oil and suspended particles from the cleaning solution, reducing contamination buildup, extending solution life, and lowering operating costs.
08

Built with thick 304 stainless steel plates and precision argon welding, the machine offers excellent durability and leak resistance for long-term industrial operation.
09

We provide customized solutions based on your workpieces and production requirements, including tank dimensions, cleaning stages, ultrasonic configurations, filtration, drying systems, and complete cleaning processes.

Technical Parameter

Model	Capacity (L)	Tank Size (mm)	Ultrasonic Power	Heating Power	Drying Power(W)	Frequency (kHz)	Timer (H)
JTM-4024GPH	38	500300250	600W*2	1500W*2	3000	28/40	1-99
JTM-4036GPH	53	500350300	900W*2	1500W*2	3000	28/40	1-99
JTM-4048GPH	77	550400350	1200W*2	3000W*2	3000	28/40	1-99
JTM-4060GPH	99	550450400	1500W*2	3000W*2	4500	28/40	1-99
JTM-4061GPH	96	800300400	1500W*2	3000W*2	4500	28/40	1-99
JTM-4072GPH	135	600500450	1800W*2	4500W*2	4500	28/40	1-99
JTM-4096GPH	175	700500500	2400W*2	6000W*2	6000	28/40	1-99
JTM-4120GPH	264	800600550	3000W*2	6000W*2	6000	28/40	1-99
JTM-4144GPH	360	1000600600	3600W*2	9000W*2	6000	28/40	1-99
JTM-4216GPH	540	1000900600	5400W*2	18000W*2	9000	28/40	1-99
JTM-4288GPH	960	12001000800	7200W*2	24000W*2	12000	28/40	1-99
JTM-4432GPH	1500	150010001000	10800W*2	30000W*2	15000	28/40	1-99

Related videos

The upgraded electric transfer design provides a more convenient and efficient alternative to traditional manual operation. This video demonstrates the system in operation, showcasing the motorized lifting and horizontal transfer system and basket movement between different tanks.

Cleaning Effect

Compared with manual cleaning methods, ultrasonic cleaning provides deeper and more consistent results by removing oil, particles, and contaminants from complex surfaces and hard-to-reach areas.

motor-part-cleaning-with-skymen-ultrasonic-cleaner-before-and-after
