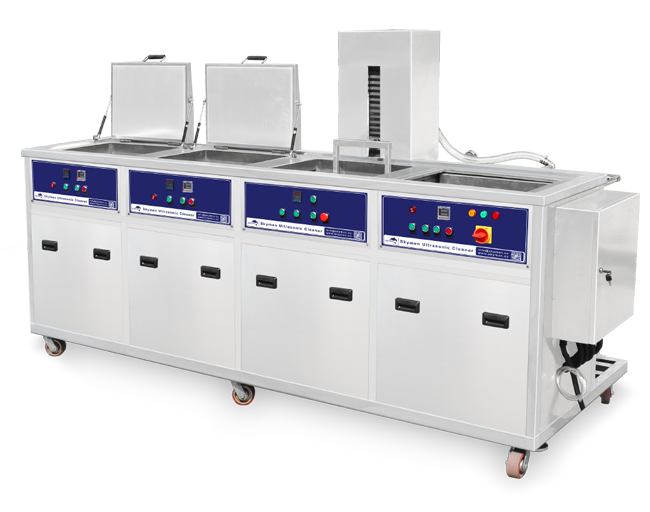

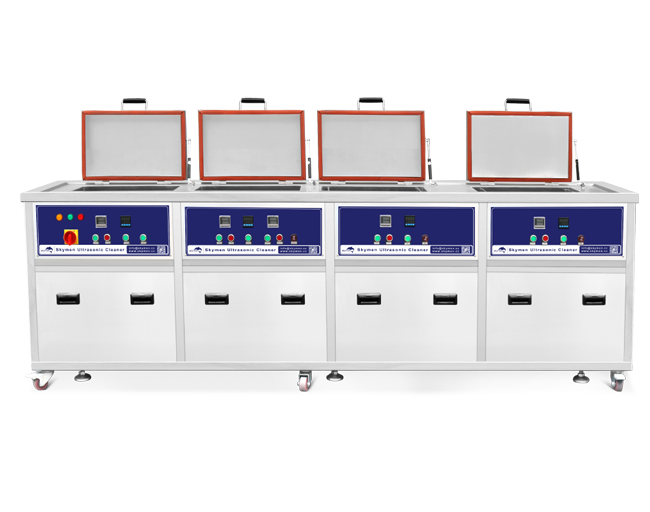

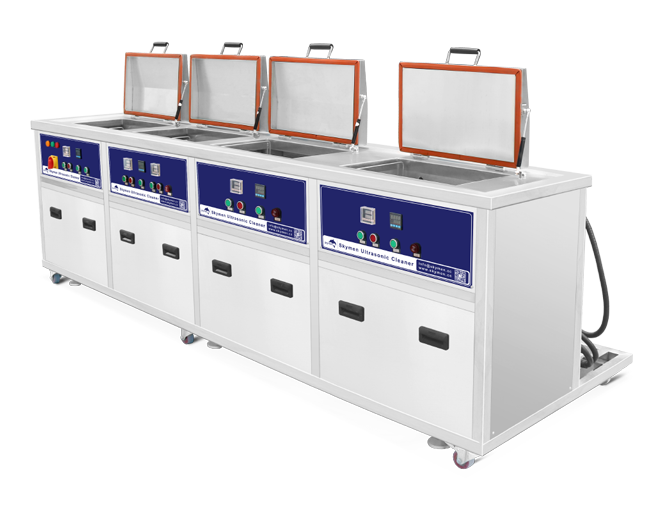

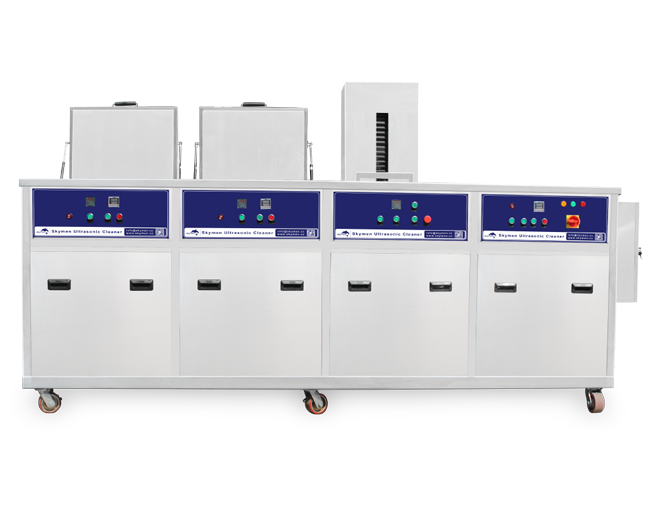

Four Tank Ultrasonic Cleaning Machine

1.Put the parts in 1st tank for ultrasonic cleaning with filtration system, cleaning media is tap water with detergent, cleaning time is about 15 minutes.

2.After 15 minutes, put the parts in 2nd tank for rinsing to to wash away the cleaning agent and residual stains for a better cleaning effect. Media is only tap water, soaking the parts in 2nd tank about 5 minutes.

3.After 5 minutes, put the parts in 3rd tank for rinsing, media is only tap water, soaking the parts in 3rd tank about 5 minutes.

4.The last cleaning process for drying tank about 5-10minutes.

Request Quote Download

Product Features

01

Fast and thoroughly cleaning
02

Saving labor, time, detergent
03

OEM/ODM wholesale service
04

No damage for cleaning the parts
05

Removing dirt and dust easily
06

With emergency stop switch
07

SUS 304/SUS 316 tank material
08

Filtration system to filter floating debris
09

Powerful and durable branded pumps
10

Free stainless steel cleaning basket
11

With water inlet/outlet in suitable place
12

With stainless steel basket
13

Double/Multi frequency is available

Technical Parameter

Model	Capacity (L)	Tank Size (mm)	Ultrasonic Power (W)	Heating Power (W)	Frequency (kHz)	Timer (H)	Heating Temp(°c)	Drying Temp(°c)
JP-4024GPH	38	500300250	0-600*2	1500*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4036GPH	53	500350300	0-900*2	1500*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4048GPH	77	550400350	0-1200*2	3000*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4060GPH	99	550450400	0-1500*2	3000*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4061GPH	96	800300400	0-1500*2	3000*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4072GPH	135	600500450	0-1800*2	4500*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4096GPH	175	700500500	0-2400*2	6000*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4120GPH	264	800600550	0-3000*2	6000*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4144GPH	360	1000600600	0-3600*2	9000*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4168GPH	420	1500700400	0-4200*2	12000*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4192GPH	480	1200500800	0-4800*2	12000*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4216GPH	540	1000900600	0-5400*2	18000*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4240GPH	640	1000800800	0-6000*2	21000*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4264GPH	800	10001000800	0-6600*2	24000*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4288GPH	960	12001000800	0-7200*2	24000*2	28/40	0-99H	Room temp-95	Room temp-150
JP-4432GPH	1500	150010001000	0-10800*2	30000*2	28/40	0-99H	Room temp-95	Room temp-150

Related videos

Jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop.

Cleaning Effect

Ultrasonic cleaning is fast and effective, and can easily remove oil, grease, rust, glue and other dirt. It can also clean blind holes, slits and hidden areas of workpieces.
