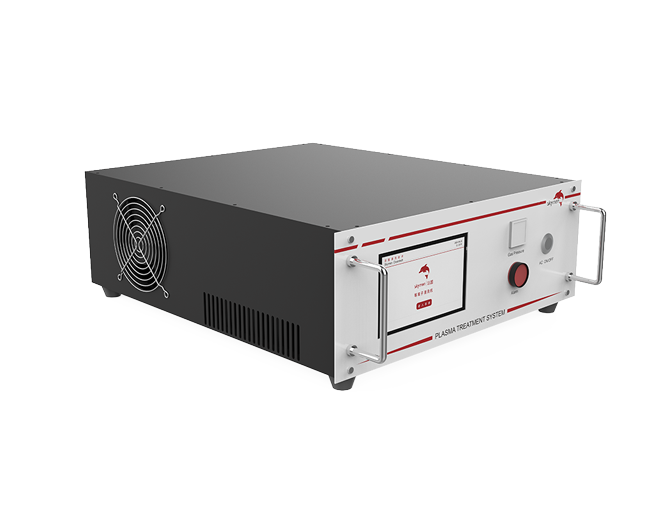

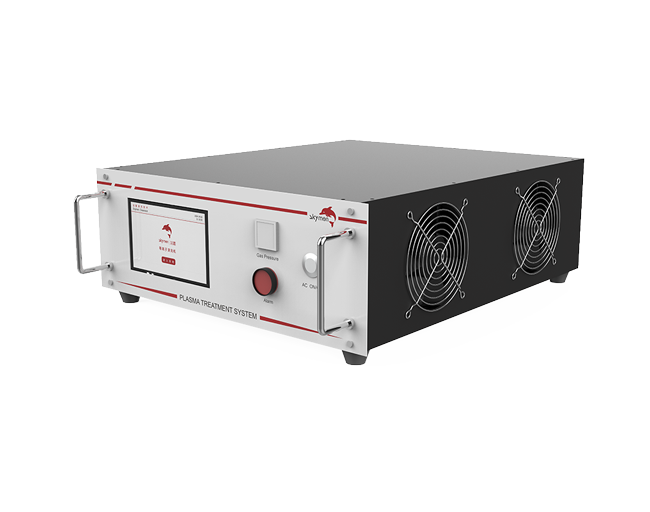

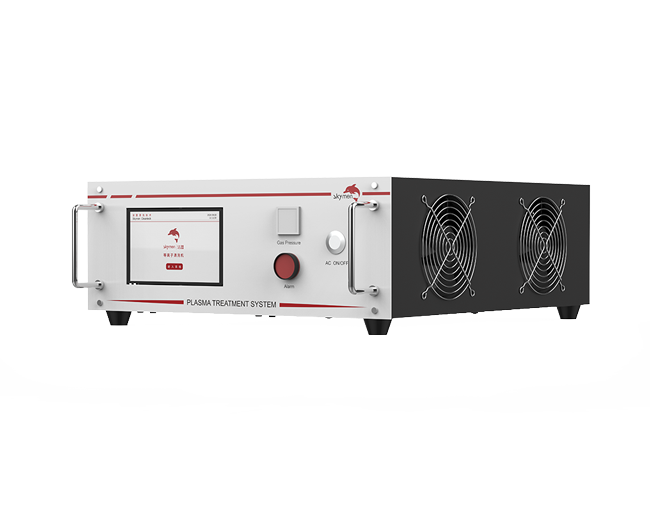

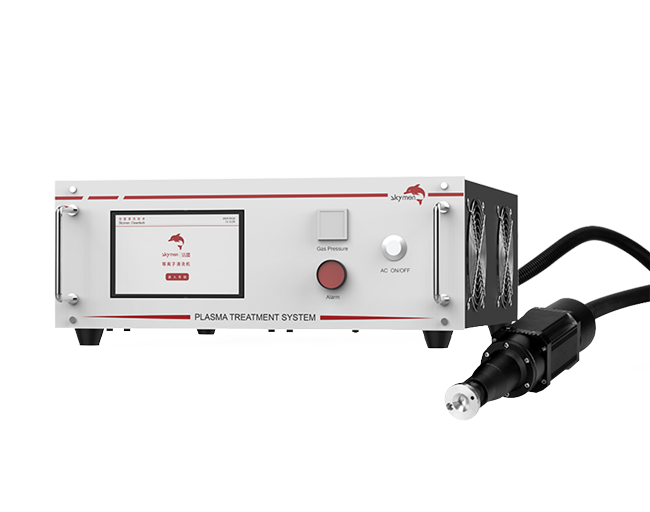

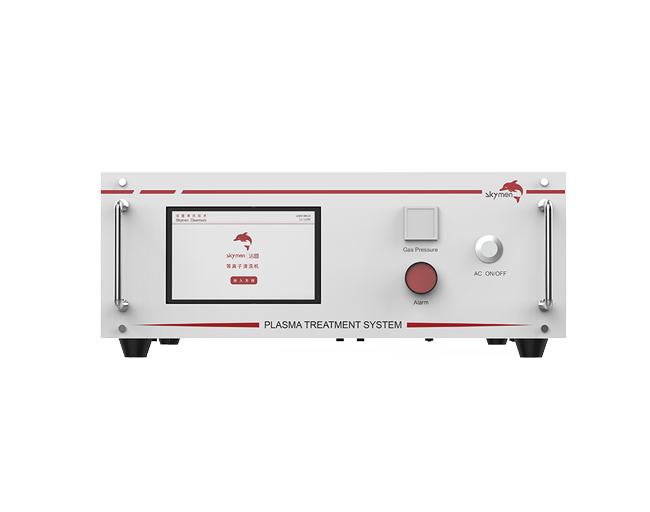

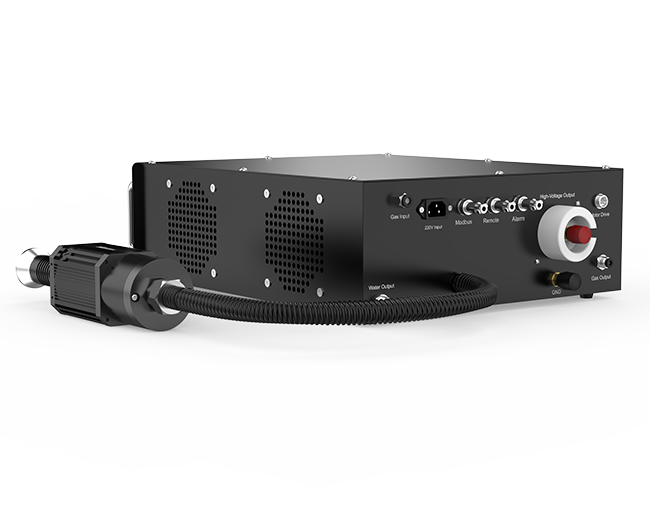

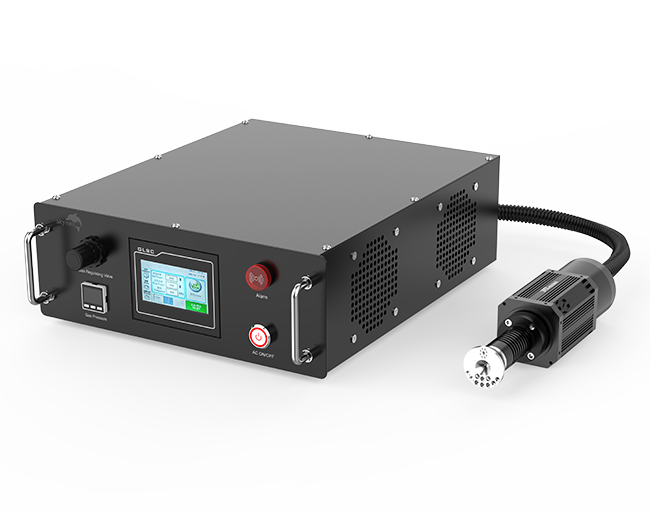

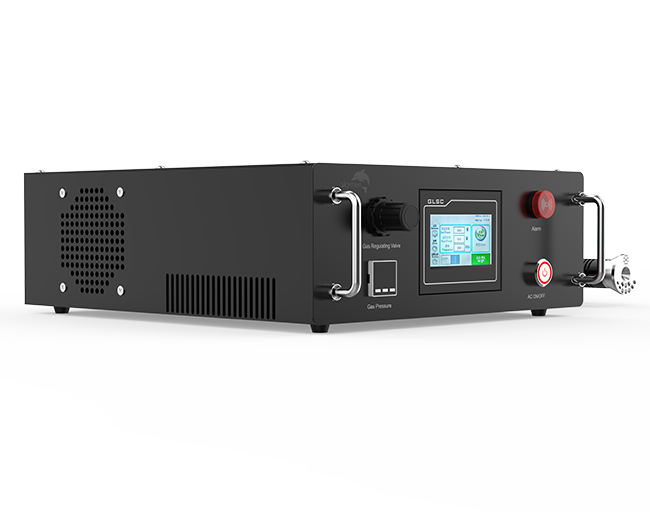

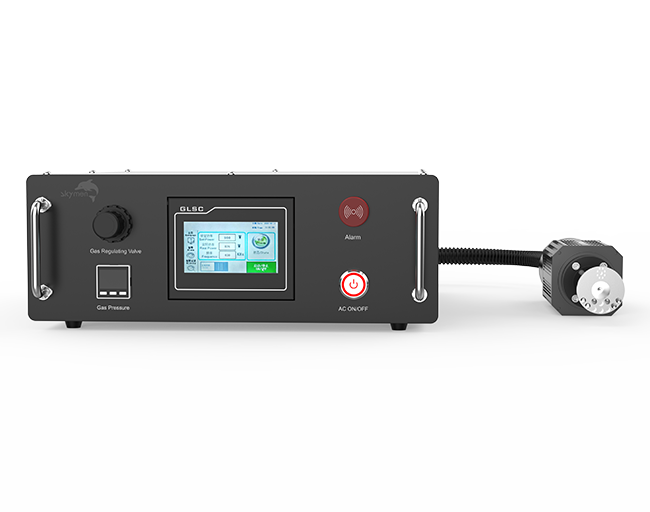

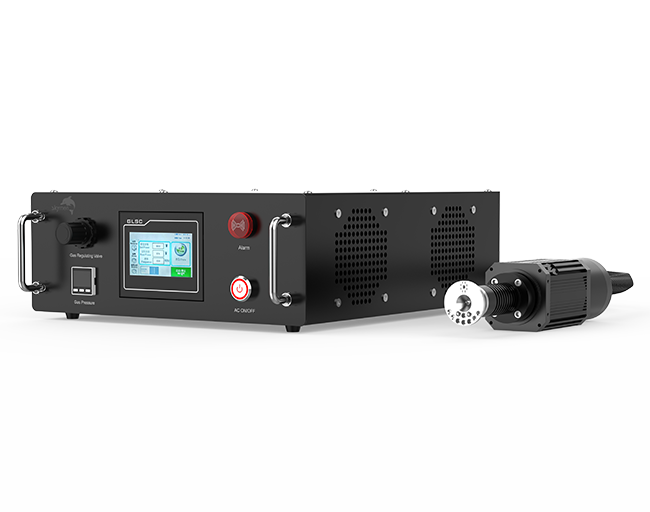

Rotary Jet Atmospheric Pressure Plasma Surface Treatment Machine

The rotating jet enables plasma treatment on the workpiece with a high relative speed as a result of the rotation principle, achieving a very uniform treatment effect and allowing for a wider processing surface, enabling surface pre-treatment of a maximum of 100 mm. Additionally, its modular design allows for easy integration into existing production lines, streamlining production processes and leading to significant cost reductions.

Request Quote Download

Product Features

01

Compact design saves space when used, and it can be integrated into production lines or robot systems
02

Uses a microprocessor controller to control parameters
03

It can operate at high loads in harsh environments
04

Conventional treatment only requires compressed air, and the cost of use is extremely low
05

Lower processing temperature, no thermal damage, and thermal oxidation problems
06

Supports customized text display in different languages

Technical Parameter

Model	Frequency (kHz)	Power	Jet Weight (kg)	Processing Width	Pressure	Process Gas
JMD-1000XZ	30	Adjustable 600-1000 W	3.5	Standard 50mm, Optional 20-100 mm	0.3-0.7  MPa (No Water or Oil)	Compressed Air / Nitrogen

Related videos

The rotating jet generates a high relative speed between the plasma and the workpiece through its rotational movement. This enables more uniform plasma treatment while expanding the effective processing surface.

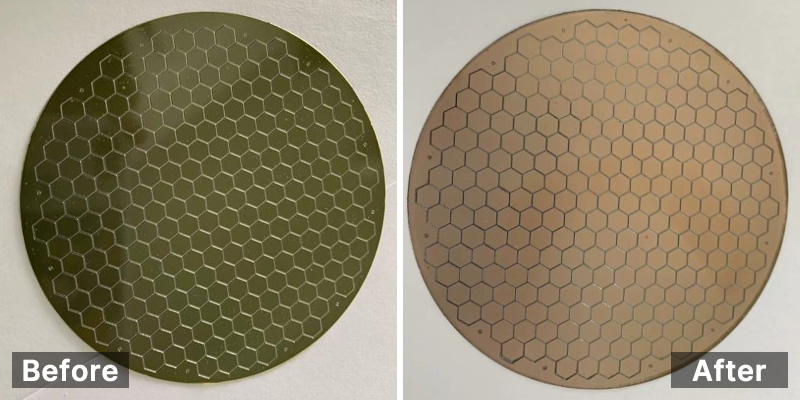

Cleaning Effect

Components can be selectively treated and directly processed. This plasma treatment process achieves cleaning or activation effect on the entire material structure.
