In modern industrial manufacturing, achieving high cleanliness standards is crucial for product quality and operational efficiency. Industrial ultrasonic cleaning machines have become an essential solution for removing oil, dirt, metal particles, and carbon residues from mechanical components with precision and efficiency.
Compared to traditional cleaning methods, ultrasonic technology provides deep, uniform, and damage-free cleaning, even in complex geometries like blind holes, fine grooves, and intricate assemblies. Let’s take a deeper look into how industrial ultrasonic cleaning machines work, their core parameters, and the main structural types used across industries.

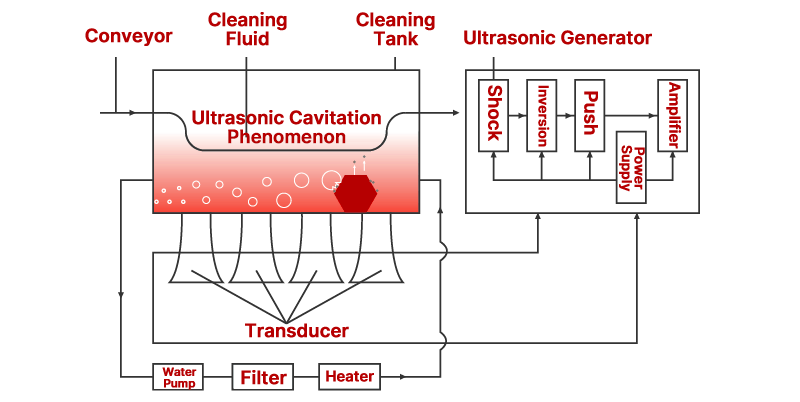

Industrial ultrasonic cleaning machines use high-frequency sound waves—typically between 20 kHz and 200 kHz—transmitted through a liquid medium to generate microscopic bubbles in the cleaning solution. These bubbles rapidly expand and collapse in a process called cavitation, releasing intense localized energy.
When cavitation occurs near the surface of the workpiece, it produces powerful microjets and shockwaves that break down contaminants such as oil, rust, polishing paste, or carbon residue without damaging the base material.
The result is：
Selecting the right ultrasonic cleaning system requires understanding several key technical parameters that determine cleaning performance and suitability for specific applications.
Frequency determines how aggressively the cavitation bubbles act on the surface.
For most industrial cleaning operations, 28kHz and 40kHz are the standard choices due to their strong cleaning action and versatility.
Higher power results in faster cleaning and stronger cavitation, ideal for heavy-duty industrial use. However, excessive power density may cause surface erosion on delicate components and increase noise or energy consumption.
A recommended power density for industrial applications is between 10–20 W/L (watts per liter) of cleaning solution.
The tank size determines how many and what size of components can be cleaned simultaneously. Industrial ultrasonic cleaning tanks are often custom-built to fit large or irregularly shaped parts.
Typical capacities range from 38L to over 10000L, with stainless steel construction (SUS304 or SUS316L) for durability and corrosion resistance.
Many advanced systems are equipped with:
Temperature plays a key role in enhancing cleaning performance.
Most industrial ultrasonic cleaning machines feature digital temperature control systems, usually adjustable between 30°C and 80°C. Temperature sensors ensure stable operation and prevent overheating that may damage sensitive materials or electronic components.
Higher temperatures:
Optimal range: 45–60°C for metal parts cleaning and oil removal.
Cleaning duration depends on the level of contamination, part geometry, and frequency used. Industrial ultrasonic systems are usually equipped with adjustable digital timers and PLC-controlled automation, allowing operators to program different stages (e.g., ultrasonic cleaning, rinsing, drying).
Typical cleaning cycles range from 5 to 30 minutes, ensuring high efficiency without overexposure.
The ultrasonic generator converts electrical energy into high-frequency signals, which are then transmitted to transducers bonded to the cleaning tank.
Industrial systems typically use:
Advanced generators allow frequency sweeping, power modulation, and real-time fault detection, improving overall cleaning reliability.
Depending on production requirements and automation levels, industrial ultrasonic cleaning systems can be categorized into several structural types.

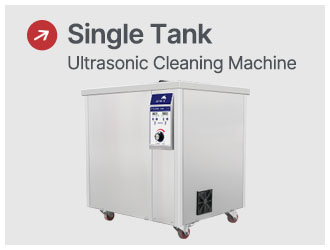

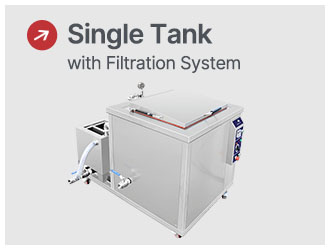

The single tank ultrasonic cleaner is the simplest yet most versatile industrial model. It integrates ultrasonic cleaning, heating, and timing control within one tank, suitable for small-batch or standalone cleaning processes.
Recommended for:
Key Features: Compact and durable stainless-steel design with easy operation and quick installation. Adjustable power and temperature control, optional filtration system.
Ideal for metalworking, mechanical repair, and general industrial cleaning.

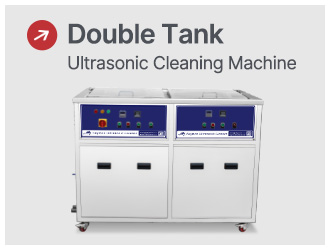

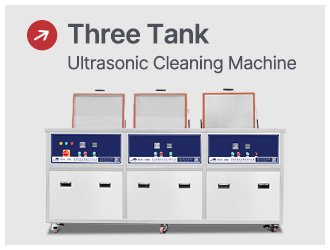

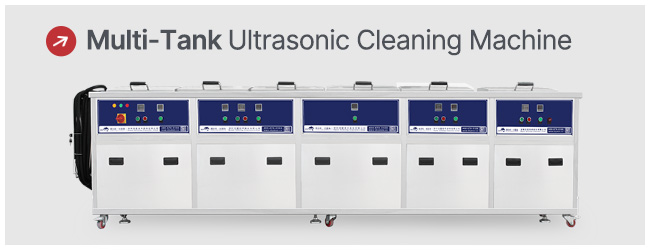

The multi-tank ultrasonic cleaning system is designed for comprehensive and continuous industrial cleaning processes. It integrates multiple functional tanks—such as ultrasonic cleaning, rinsing, pure-water rinsing, drying, and solvent treatment—into one fully coordinated system.
Each stage can operate independently or as part of an automated sequence, ensuring thorough cleaning and contamination-free results for parts with complex geometries or strict cleanliness requirements.
Recommended for:
Key Features:
Multi-stage ultrasonic cleaning machines are ideal for industrial users pursuing high throughput, consistent quality, and automated precision cleaning across complex production workflows.

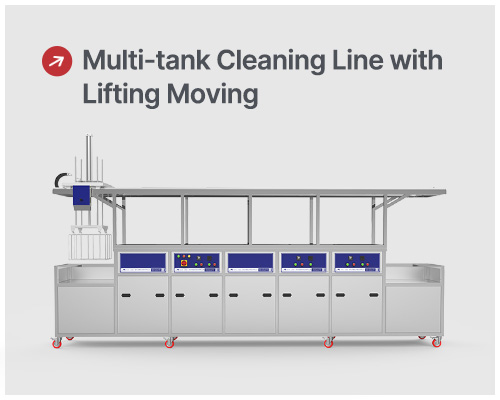

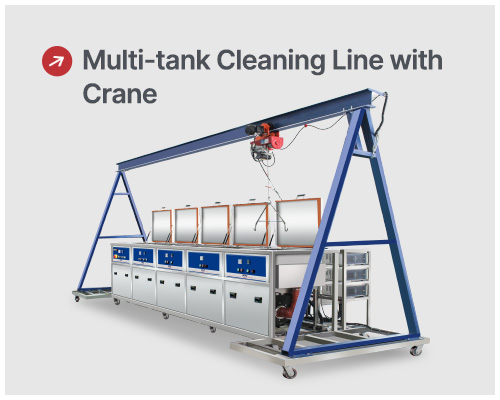

The Semi-Automatic Ultrasonic Cleaning Machine strikes an excellent balance between manual control and automation, making it ideal for manufacturers who need high cleaning efficiency with flexible operation. It typically integrates ultrasonic cleaning, rinsing, and drying processes, assisted by manual or pneumatic lifting systems. Operators can easily control the workflow through intuitive interfaces, ensuring precision while retaining human supervision over delicate parts.
Recommended for:
Key Features:
Compared to fully automatic systems, they are more cost-effective and easier to maintain, while still significantly reducing labor intensity and improving cleaning consistency. For factories aiming to upgrade from manual cleaning to a semi-automated production line, this is a practical and scalable solution.

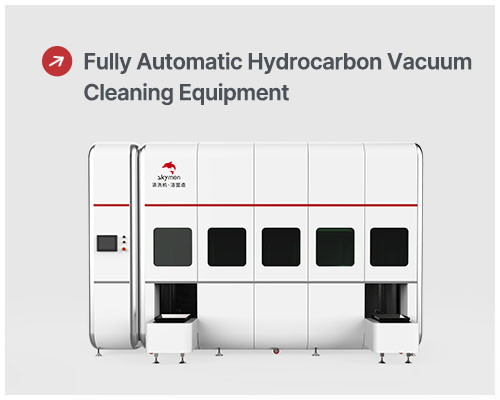

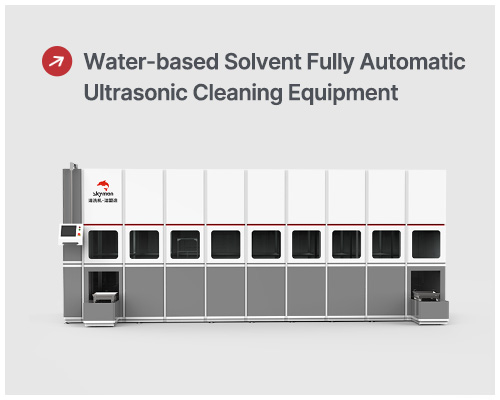

The Fully Automatic Ultrasonic Cleaning Machine represents the highest level of industrial cleaning automation. Designed for mass production environments and high-precision industries, it integrates multiple stages—such as ultrasonic cleaning, rinsing, spray washing, drying, and cooling—into one continuous, automated workflow.
Equipped with a PLC + HMI control system, the entire process is fully programmable and traceable, allowing real-time monitoring and adjustment of parameters like ultrasonic power, temperature, and circulation speed. Automated loading and unloading systems, combined with conveyor or robotic transfer mechanisms, ensure consistent throughput and eliminate human error.
This type of machine is particularly suited for automotive parts, medical devices, semiconductors, and aerospace components, where reliability, repeatability, and cleanliness standards are extremely demanding. With closed-loop filtration and solvent recovery systems, it also minimizes chemical waste and supports environmentally friendly production.
By adopting a fully automatic ultrasonic cleaning system, enterprises can achieve maximum production efficiency, uniform cleaning quality, and significant labor savings, paving the way toward intelligent and sustainable manufacturing.
Industrial ultrasonic cleaning machines are used across a wide range of sectors to ensure the performance, precision, and longevity of components.
Cleaning engine blocks, carburetors, fuel injectors, and transmission components.
Cleaning turbine blades, hydraulic parts, and navigation instruments to ensure flight safety.
Removing grease, dust, and oxide layers from bearings, gears, and tools.
Cleaning circuit boards, sensors, and semiconductor wafers from flux and solder residues.
Industrial ultrasonic cleaning enhances productivity, reduces chemical waste, and ensures consistent surface quality — making it a cornerstone of modern precision manufacturing.
Understanding the key parameters of industrial ultrasonic cleaning machines — including frequency, power, tank capacity, and control systems — is essential for selecting the most suitable equipment for your production line.
With continuous technological improvements and automation integration, industrial ultrasonic cleaning machines are helping manufacturers achieve cleaner, more efficient, and environmentally sustainable production worldwide.
