A high-pressure water pump is used to pressurize the cleaning fluid to form a high-speed, high-pressure jet that impacts metal shavings, dust, cutting fluid, grease, etc. on the surface of the workpiece to separate the dirt and achieve cleaning.
Stainless steel body. High temperature resistance, oxidation resistance, acid and alkali corrosion resistance, and long service life.
02
The button control is simple, intuitive and easy to operate, and there is an emergency button, which can quickly cut off the operation under special circumstances. *Customizable PLC+touch screen control.
03
Circulation filtration system. Micron-level filter effectively filters floating oil dirt and particles, reducing the frequency of cleaning fluid replacement.
04
Seal the silencer cover. It is equipped with a gas strut to assist in opening and closing, making the cover easy to open and close tightly. The silicone foam sealing strip tightly fits the edge of the cover, preventing leakage and silencing and reducing noise. *Optional configuration: transparent observation window + internal LED lighting for easy observation of cleaning conditions.
05
Fix the foot cup. The foot cup is made of high-strength material, stable and reliable.
06
Flexible universal wheel. Flexible steering makes it easy to push, and the equipment can be easily moved to the required position, improving maneuverability.
07
Manual hydraulic gun (optional) Manual assisted cleaning is suitable for workpieces with special structures to improve the cleaning effect.
08
Manual air gun (optional) Can be connected to an air compressor to quickly blow away residual liquid on the surface and speed up the drying of the workpiece.
Technical Parameter
Model
JP-050ZP
Basket Diameter
500MM
Work Space Height
300MM
Cavity And Auxiliary Tank Materials
SUS304/1.5MM
Basket Load Capacity (Kg)
80
Speed (R/Min)
motor/0.15KW
Auxiliary Tank Volume (L)
50L
Heating Power (Kw)
3
Water Pump Power (Kw)
0.55KW
Spray Pressure (Mpa)
0.25
Related videos
Jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop.

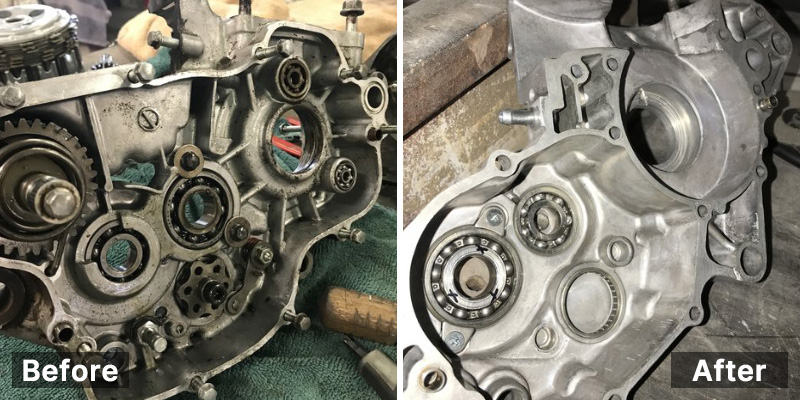

Cleaning Effect
Ultrasonic cleaning is fast and effective, and can easily remove oil, grease, rust, glue and other dirt. It can also clean blind holes, slits and hidden areas of workpieces.
